DK-SRS48V5KW STACK 3 IN 1 LITHIUM BATTERY WITH INVERTER AND MPPT CONTROLLER BUILT-IN

Short Description:

Components: lithium battery+inverter+MPPT+AC charger
Power rate: 5KW
Energy capacity: 5KWH, 10KWH, 15KWH, 20KWH
Battery type: Lifepo4
Battery voltage: 51.2V
Charging: MPPT and AC charging


Product Detail

Product Tags

DK-SRS48V5KW STACK 3 IN 1 LITHIUM BATTERY WITH INVERTER AND MPPT

Technical Parameters

DK-SRS48V-5.0KWH DK-SRS48V-10KWH DK-SRS48V-15KWH DK-SRS48V-20.0KWH
BATTERY

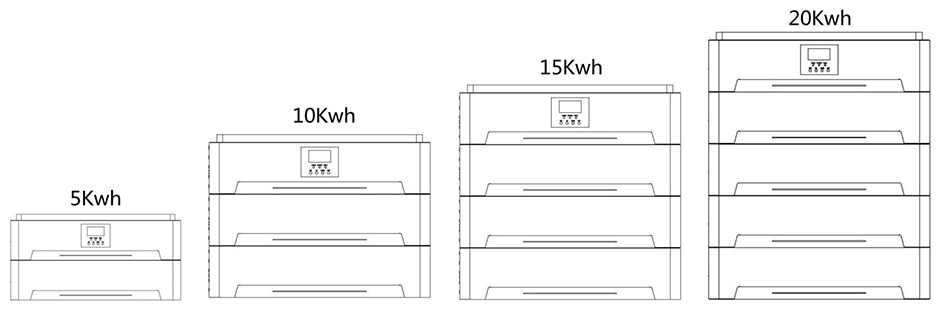

Battery Module 1 2 3 4
Battery Energy 5.12kWh 10.24kWh 15.36kWh 20.48kWh
Battery Capacity 100AH 200AH 300AH 400AH
Weight 80kg 133kg 186kg 239kg
Dimension L× D× H 710×450×400mm 710×450×600mm 710×450×800mm 710×450×1000mm
Battery Type LiFePO4
Battery Rated Voltage 51.2V
Battery Working Voltage Range 44.8 ~ 57.6V
Maximum Charging Current 100A
Maximum Discharging Current 100A
DOD 80%
Parallel Quantity 4
Designed Life-span 6000Cycles
PV CHARGE
Solar Charge Type MPPT
Maximum Output Power 5KW
PV Charging Current Range 0 ~ 80A
PV Operating Voltage Range 120 ~ 500V
MPPT Voltage Range 120 ~ 450V
AC CHARGE
Maximum Charge Power 3150W
AC Charging Current Range 0 ~ 60A
Rated Input Voltage 220/230Vac
Input Voltage Range 90 ~ 280Vac
AC OUTPUT
Rated Output Power 5KW
Maximum Output Current 30A
Frequency 50Hz
Overload Current 35A
BATTERY INVERTER OUTPUT
Rated Output Power 5KW
Maximum Peak Power 10KVA
Power Factor 1
Rated Output Voltage (Vac) 230Vac
Frequency 50Hz
Auto Switch Period <15ms
THD <3%
GENERAL DATA
Communication RS485/CAN/WIFI
Storage time / temperature 6 months @25℃;3 months @35℃;1 months @45℃;
Charging temperature range 0 ~ 45℃
Discharging temperature range -10 ~ 45℃
Operation Humidity 5% ~  85%
Nominal Operation Altitude <2000m
Cooling Mode Force-Air Cooling
Noise 60dB(A)
Ingress Protection Rating IP20
Recommended Operation Environment Indoor
Installation Method Horizontal

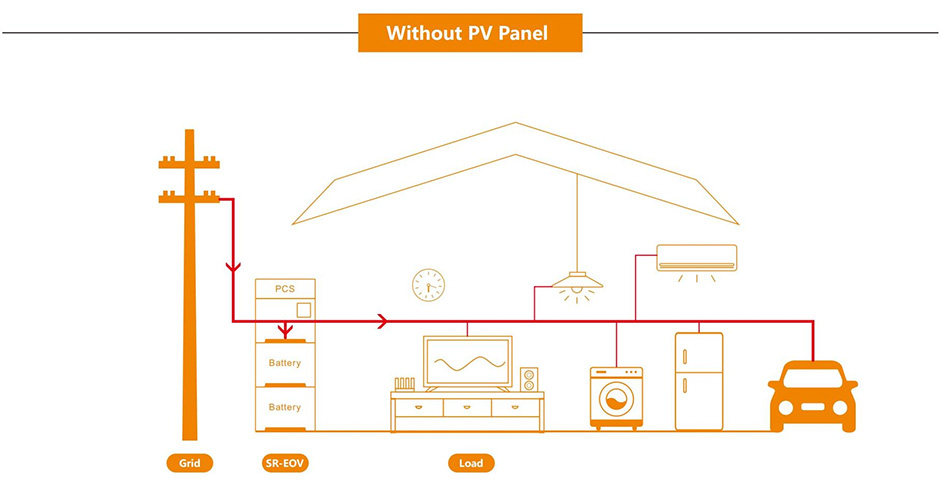

pv panel

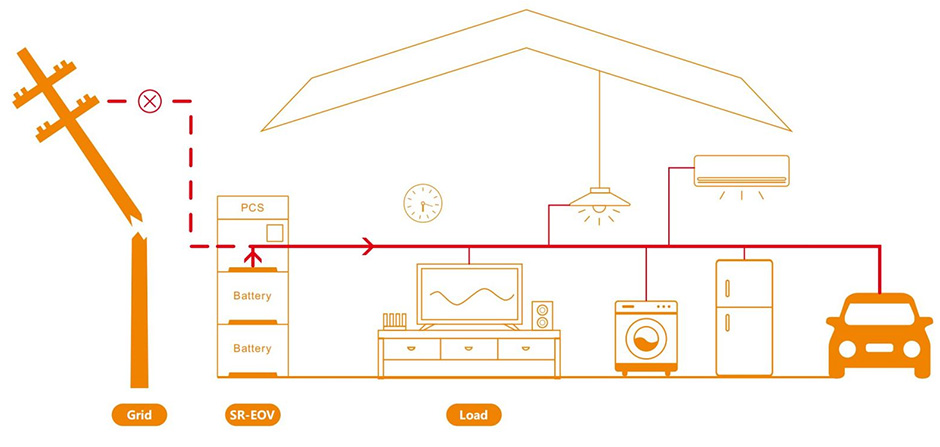

pv panel1

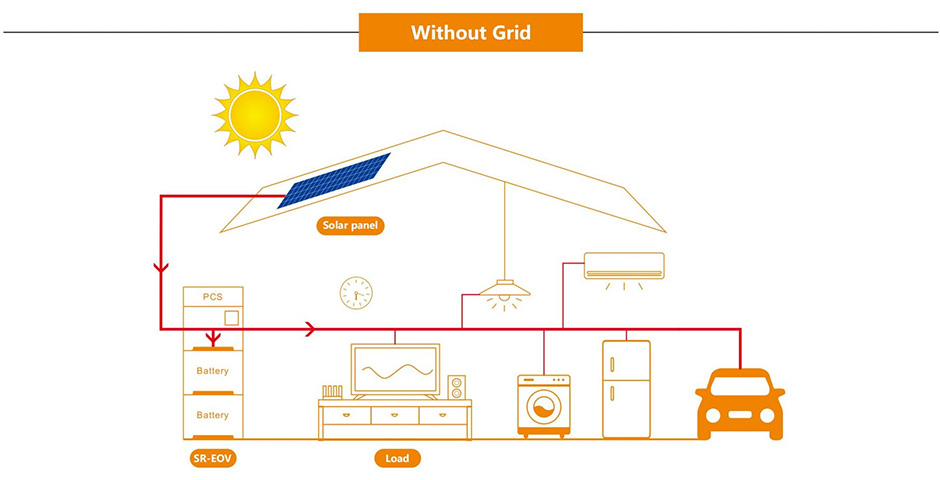

pv panel2

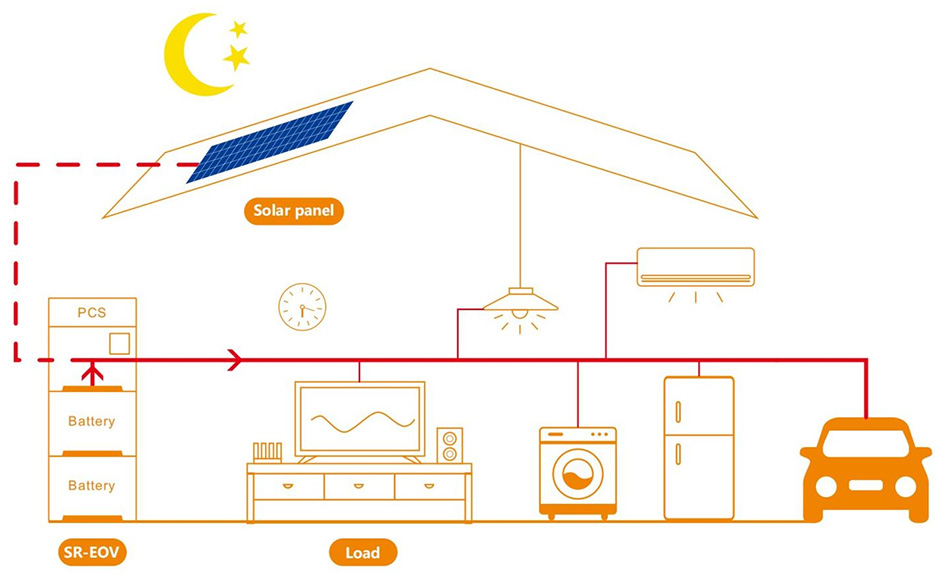

pv panel3

Classic working mode

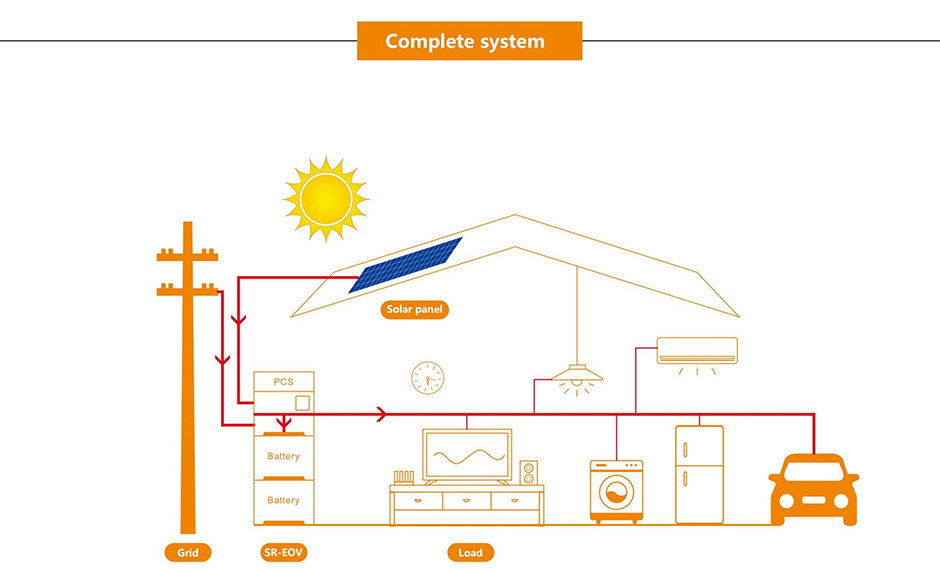

complate system

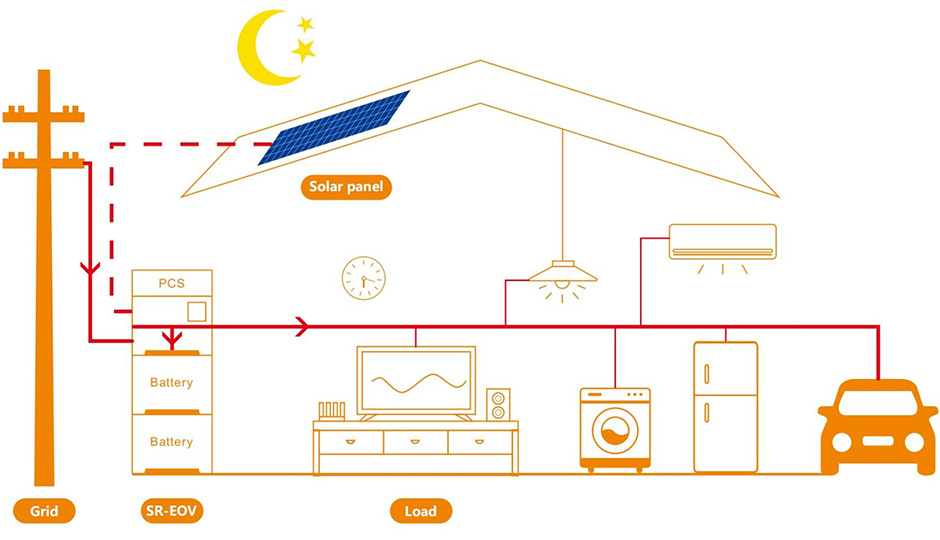

complate system1

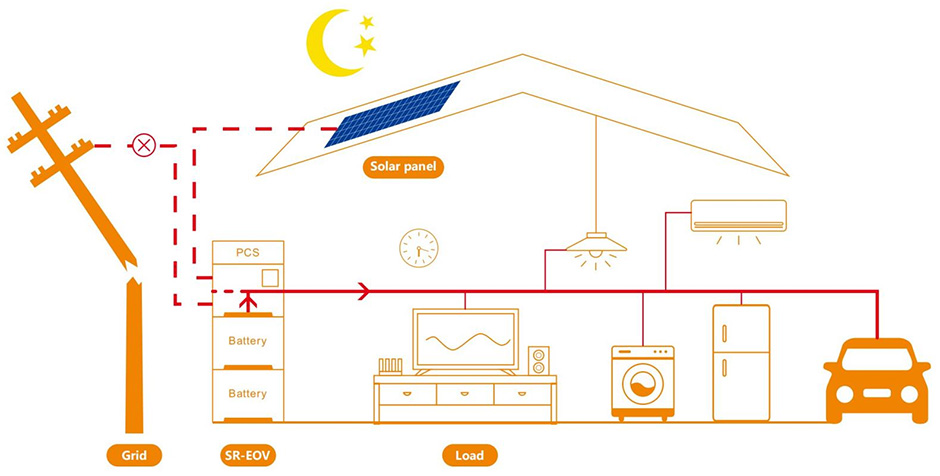

complate system2
