DK TELECOM TOWER BATTERY BASE STATION LITHIUM BATTERY
Advantage Of D King Lithium Battery
1. D King company only use high quality grade A pure new cells, never use grade B or used cells, so that our quality of lithium battery is very high.
2. We only use high quality BMS, so our lithium batteries are more stable and safer.
3. We do a lot of tests, include Battery extrusion test, Battery impact test, Short circuit test, Acupuncture test, Overcharge test, Thermal shock test, Temperature cycle test, Constant temperature test, Drop Test. etc. To make sure the batteries are in good condition.
4. Long cycle time above 6000 times, the designed life time is above 10years.
5. Customized different lithium batteries for different applications.
Technical Parameter
| General specifications | |||||||||
| Battery Model | Rated | Rated | Charge Current(A) | Max.Discharge | Dimension(mm) | Approx.Weight(kg) | |||
| Voltage(V) | Capacity(Ah) | Recom | Max | Current(A) | W | D | H | ||
| 48NPFC10 | 48 | 10 | 2 | 10 | 10 | 442 | 243 | 44 | 7.3 |
| 48NPFC20 | 48 | 20 | 4 | 20 | 20 | 442 | 243 | 88 | 13.4 |
| 48NPFC50 | 48 | 50 | 10 | 50 | 50 | 442.5 | 390 | 132.5 | 28.5 |
| 48NPFC80(3U) | 48 | 80 | 16 | 80 | 80 | 442.5 | 400 | 132.5 | 39 |
| 48NPFC80(5U) | 48 | 80 | 16 | 80 | 80 | 442.5 | 400 | 222 | 40 |
| 48NPFC100(19 inch) | 48 | 100 | 20 | 100 | 100 | 442.5 | 400 | 222 | 45.5 |
| 48NPFC100(23 inch) | 48 | 100 | 20 | 100 | 100 | 522.5 | 420 | 132.5 | 48 |
| 48NPFC5(No Breaker,No Disassembly Panel) | 48 | 50 | 10 | 50 | 50 | 442.5 | 390 | 132.5 | 29.5 |
| 48NPFC80(3U锛?0A锛?/span>No Breaker,No Disassembly Panel) | 48 | 80 | 16 | 50 | 50 | 442.5 | 400 | 132.5 | 38 |
| 48NPFC100(19 inch 5U,1C) | 48 | 100 | 20 | 100 | 100 | 442.5 | 400 | 222 | 45 |
| 48NPFC100(19 inch 5U,0.5C) | 48 | 100 | 20 | 50 | 50 | 442.5 | 400 | 222 | 50.5 |
| 48NPFC100(19 inch 3U,15S) | 48 | 100 | 20 | 100 | 100 | 443 | 400 | 133 | 42 |
| NOTES | |||||||||
| (1)Battery Madel | Battery models listed in the datasheet are standarded products. Narada can also supply customerized design incell, BMS and dimensions for various application scenarios. | ||||||||
| (2)Rated Voltage | 48V= 3.20Vpc*15pcs (Rated voltage of each LFP cellis 3.20Vpc). | ||||||||
| (3)Rated Capacity | C(0.2C to 40.5Vat 25 C). | ||||||||
Advantage of D King Lithium Battery
1. D King company only use high quality grade A pure new cells,never use grade B or used cells ,so that our quality of lithium battery is very high.
2. We only use high quality BMS,so our lithium batteries are more stable and safer.
3. We do a lot of tests ,include Battery extrusion test ,Battery impact test,Short circuit test,Acupuncture test,Overcharge test,Thermal shock test,Temperature cycle test,Constant temperature test,Drop Test.etc. To make sure the batteries are in good condition.
4. Long cycle time above 6000 times,the designed life time is above 10years.
5. Customized different lithium batteries for different applications.
What Applications Our Lithium Battery Use
1.Home Energy Storage
2. Large scale energy storage
3. Vehicle and boat solar power system
4. Off high way vehicle motive battery, such as golf carts, forklifts, tourist cars.etc.

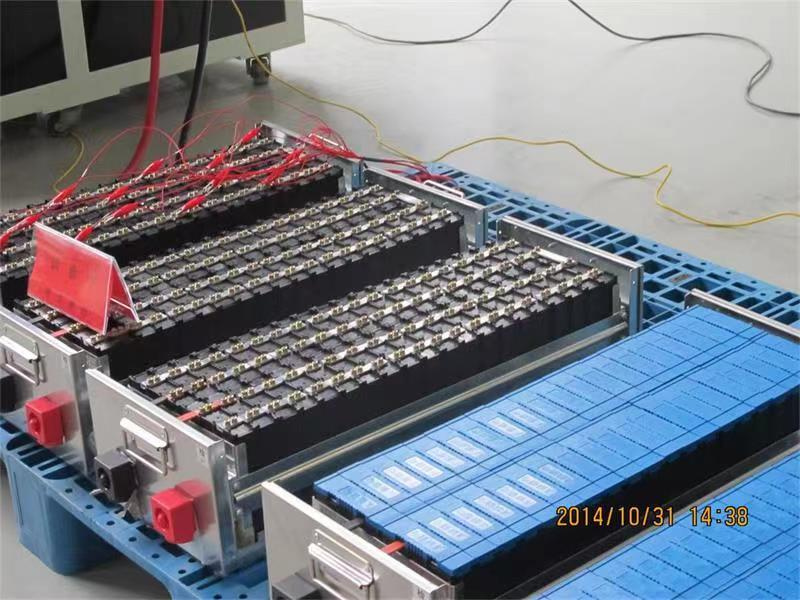

5. Extreme cold environment use lithium titanate
Temperature:-50℃ to +60℃
6. Portable and camping use solar lithium battery
7. UPS use lithium battery
8. Telecom and tower battery backup lithium battery.
What service we offer?
1. Design service. Just tell us the what you want, such as the power rate, the applications you want to load, the size and space allowed to mount the battery, the IP degree you need and working temperature.etc. We will design a reasonable lithium battery for you.
2. Tender Services
Assist guests in preparing bid documents and technical data.
3. Training service
If you a new one in the lithium battery and solar power system business, and you need a training, you can come our company to learn or we send technicians to help you to train your stuff.
4. Mounting service& maintenance service
We also offer mounting service and maintenance service with seasonable & affordable cost.
What kind of lithium batteries you can produce?
We produce motive lithium battery and energy storage lithium battery.
Such as golf cart motive lithium battery, boat motive and energy storage lithium battery and solar system, caravan lithium battery and solar power system,forklift motive battery, home and commercial solar system and lithium battery.etc.
The voltage we normally produce 3.2VDC, 12.8VDC, 25.6VDC, 38.4VDC, 48VDC, 51.2VDC, 60VDC, 72VDC, 96VDC, 128VDC, 160VDC, 192VDC, 224VDC, 256VDC, 288VDC, 320VDC, 384VDC, 480VDC, 640VDC, 800VDC etc.
The capacity available normally: 15AH, 20AH, 25AH, 30AH, 40AH, 50AH, 80AH, 100AH, 105AH, 150AH, 200AH, 230AH, 280AH, 300AH.etc.
The environment: low temperature-50℃(lithium titanium) and high temperature lithium battery+60 ℃(LIFEPO4), IP65, IP67 degree.
How is your quality?
Our quality is very high,because we use very high quality materials and we make rigorous tests of the materials. And we have very strict QC system.
Do you accept customized producing?
Yes, We customized R&D and manufacture energy storage lithium batteries, low temperature lithium batteries, motive lithium batteries, off high way vehicle lithium batteries, solar power systems etc.
What is the lead time
Normally 20-30 days
How you guarantee your products?
During the warranty period, if it is the product reason, we will send you replacement of the product. Some of the products we will send you new one with next shipping. Different products with different warranty terms.
Before we sending the replacement we need a picture or video to make sure it is the problem of our products.
Lithium battery workshops
Cases
400KWH (192V2000AH Lifepo4 and solar energy storage system in Philippines )
200KW PV+384V1200AH (500KWH) solar and lithium battery energy storage system in Nigeria
400KW PV+384V2500AH (1000KWH) solar and lithium battery energy storage system in America.
Caravan solar and lithium battery solution
More cases
Certifications
